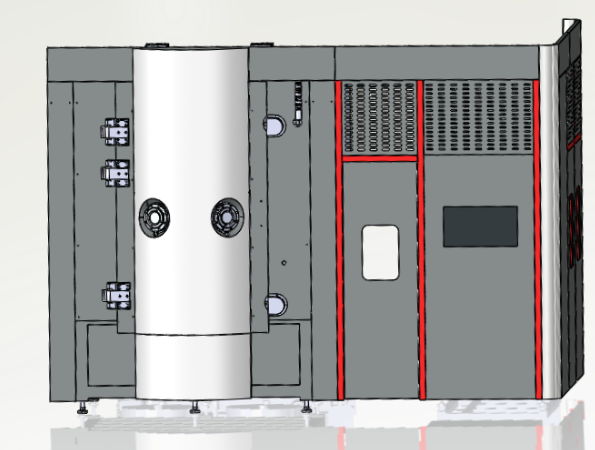

본 설비는 스퍼터링 및 아크 방식으로 휴대폰 케이스, 버튼, 워치, 식기 등 제품표면에 금속 코팅하는 설비 입니다.
This equipment enables metal coating on products such as mobile phone cases, buttons, watches, and tableware using sputtering and arc methods.
本设备为采用磁控溅射和电弧方式在手机外壳, 外框, 按键, 手表, 餐具类 外壳等产品表面上金属镀膜的设备.
Application
핸드폰 케이스 ,버튼, 워치, 식기 등 외관에 다양한 칼라 구현
Enables a variety of colors on the surfaces of mobile phone cases, buttons, watches, and tableware.
手机外壳, 外框, 按键, 手表, 餐具类 外壳上可以呈现多样色彩和华丽外观.

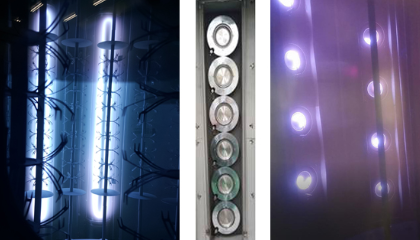

Features
- 고밀도 코팅으로 우수한 강도와 내구성
- 높은 이온화율로 60%～80% 도달
- 빠른 증착 속도와 우수한 박막층 구현
- High-density coating ensures excellent strength and durability.
- High ionization rate reaching 60%–80%.
- Fast deposition speed with superior thin-film quality.
- 高密度镀膜，具有优异的强度和耐久性。
- 高电离率，可达到60%～80%。
- 快速沉积速度，实现优质薄膜层。
Spec
| Description | Spec. | Etc. | |
|---|---|---|---|
| BODY | Vacuum Chamber | Φ1500×1700H | |
| Deposition module | ARC, Sputtering | ||
| Planetary jig module | 18 Axis | ||
| VACUUM PUMP | Oil diffusion pump | 24”, 2Set | 5.0×10-5 torr ↓ |
| Oil rotary & booster pump | SV630B & WSU2001 | ||
| Control System | AUTO Mode | ||
| OPTION | Chiller | 30RT | |
| Floor Area | L4,500×D6,500×H2,500 | Weight / 5.0t | |
