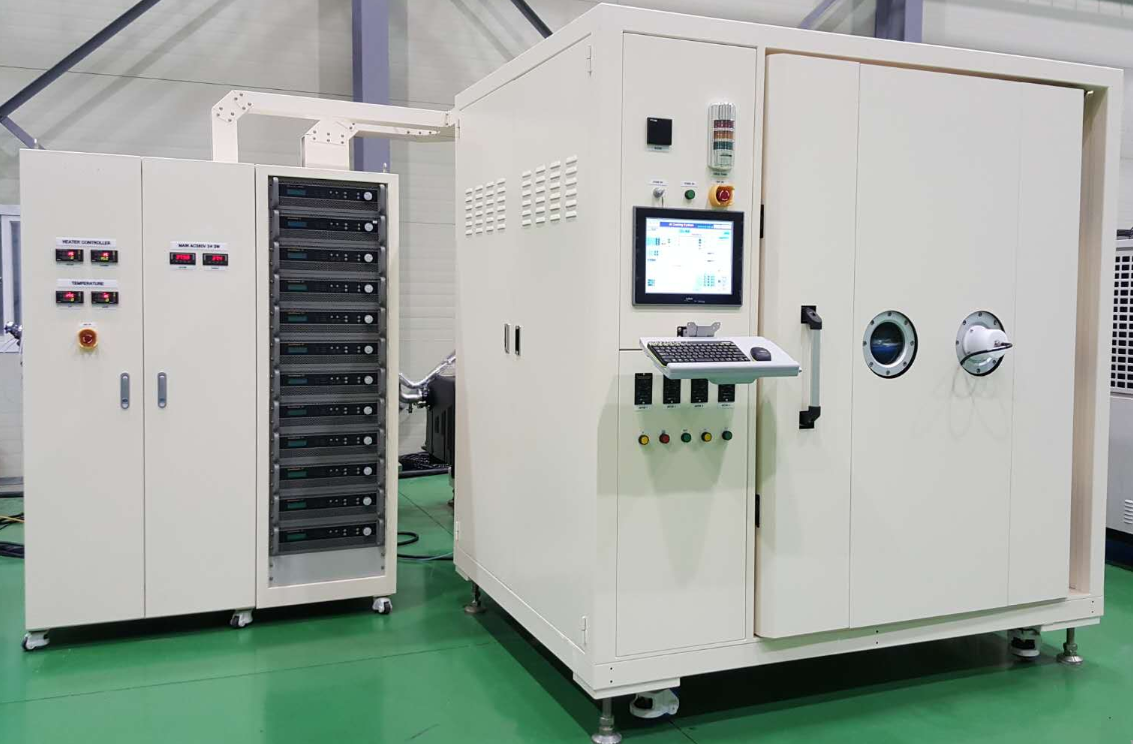

본 설비는 Magnetron Sputtering방식으로 핸드폰 사출물 커버 등 제품에 멀티코팅하는 설비입니다.
This equipment performs multi-coating on products such as Smartphone injection-molded covers using the Magnetron Sputtering method.
本设备采用 Magnetron Sputtering(磁控溅射)方式, 手机塑胶外壳等产品上可以多层镀膜的设备.
Application
핸드폰 등 사출물 표면에 다양한 칼라 코팅 가능(베젤, 배터리 커버, 기타 등)
Capable of multi-color coating on injection-molded surfaces for mobile phones (bezel, battery cover, and more)
手机塑胶物(外壳, 电池盖)等表面上可以多种颜色镀膜
Features

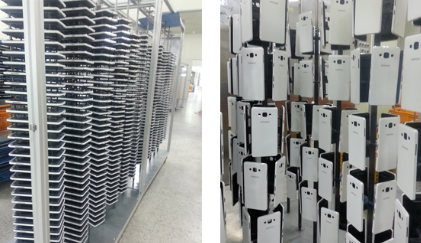

- 턴 테이블 공,자전으로 박막 균일성과 생산성 최대화
- E-Beam 대비 생산효율 향상 (3~4배↑)
- Capacity : 576EA/Batch based on 5.3”
- Process Time : 60min
- Maximizing thin-film uniformity and productivity through turntable rotation.
- Higher production efficiency compared to E-Beam (3–4× increase).
- Capacity: 576 units per batch (based on 5.3”).
- Process time: 60 min.
- 采用公转/自转治具以及磁控溅射方式形成均匀的薄膜, 生产量极大化
- E-Beam方式对比 提高生产量 (3~4倍↑)
- Capacity : 576EA/Batch based on 5.3”
- Process Time : 60min
Spec
| Description | Spec. | Etc. | |
|---|---|---|---|
| BODY | Vacuum Chamber | Φ1600×1600H | |
| Deposition module | Sputter + Evaporation | ||
| Planetary jig module | Φ280 × 12 Axis | ||
| VACUUM PUMP | Oil diffusion pump | 24”, 2Set | 5.0×10-5 torr ↓ |
| Oil rotary & booster pump | SV630B & WSU2001 | ||
| Control System | AUTO Mode | ||
| OPTION | Chiller | 25RT | |
| Poly cold | 100,000ℓ/sec | ||
| Floor Area | L4500×D6500×H2300 | Weight / 5.0t | |
